S5750 Layer 3 Giga/Multigiga

Buscador Solicitar cotización

Buscador DCN

Encuentra la familia o el modelo que necesitas

Busca por serie, modelo, familia o una parte de la descripción técnica dentro del catálogo Networking DCN.

1 familia12 modelos indexados

Usa el botón o escribe directo en el campo para buscar por modelo, familia o descripción.

Escribe al menos 2 caracteres para mostrar coincidencias por categoría y producto.

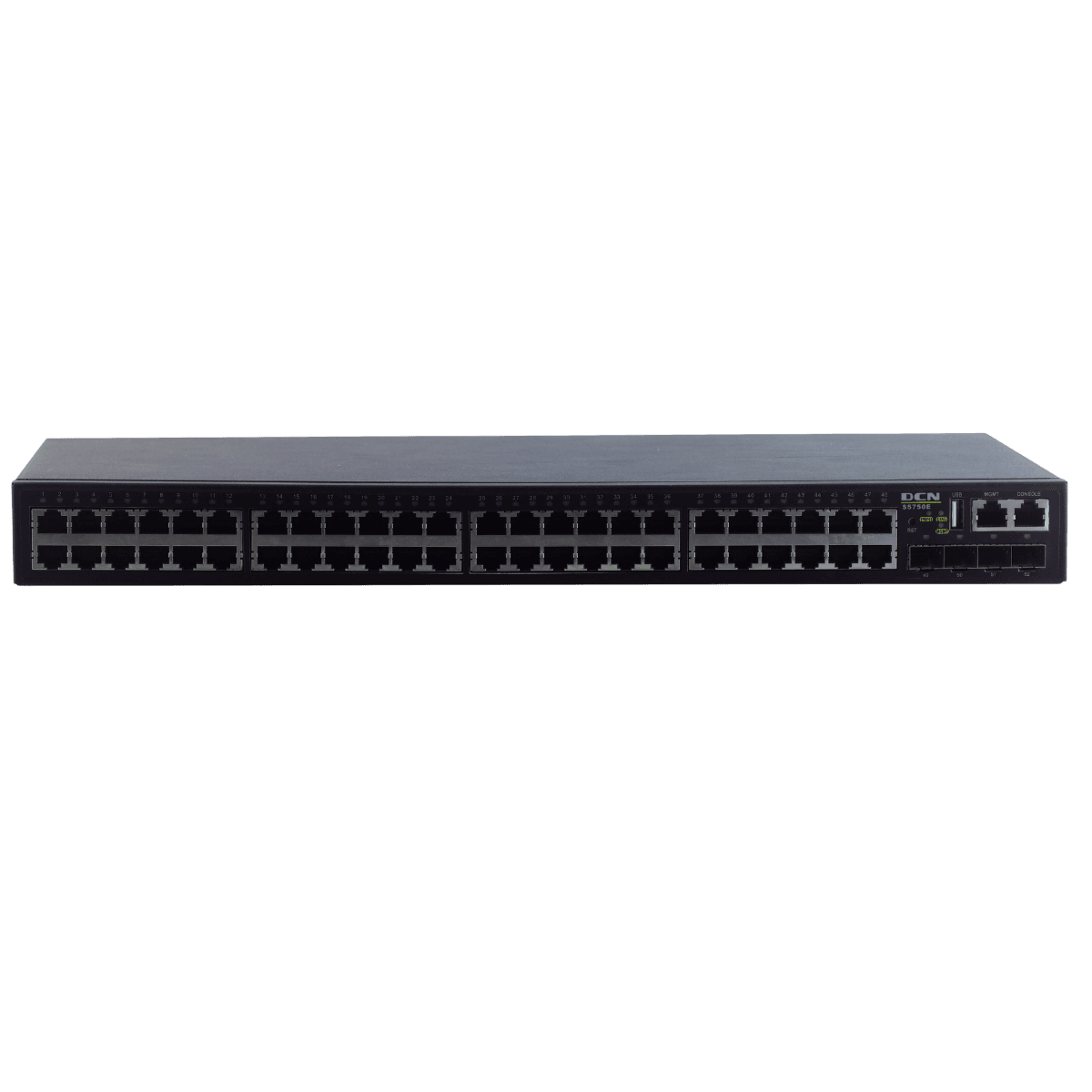

S5750E-52X-SI(R2)

L3 10G/Gigabit Access Switch (48*10/100/1000Base-T + 4*10GbE (SFP+)), AC power, Stacking

48 x 10/100/1000Base-T
4 x SFPX 10 GB
Layer 3
176 GB
16 K
DHCP, QoS, ACL, Security, sFlow,

Datasheet Ver producto

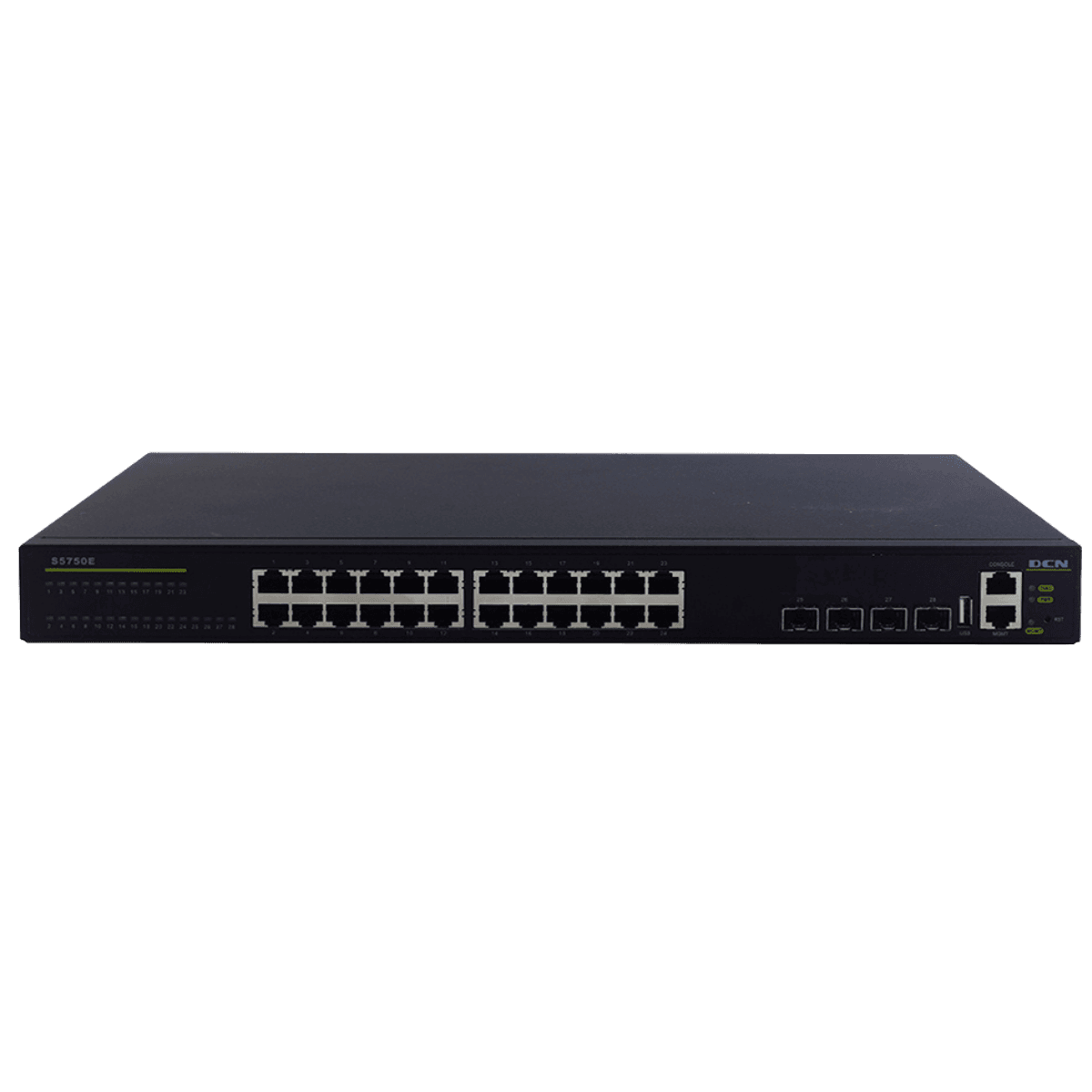

S5750E-28X-SI(R2)

L3 10G/Gigabit Access Switch (24*10/100/1000Base-T + 4*10GbE (SFP+)), AC power, Stacking

24 x 10/100/1000Base-T
4 x SFPX 10 GB
Layer 3
128 GB
16 K
DHCP, QoS, ACL, Security, sFlow,

Datasheet Ver producto

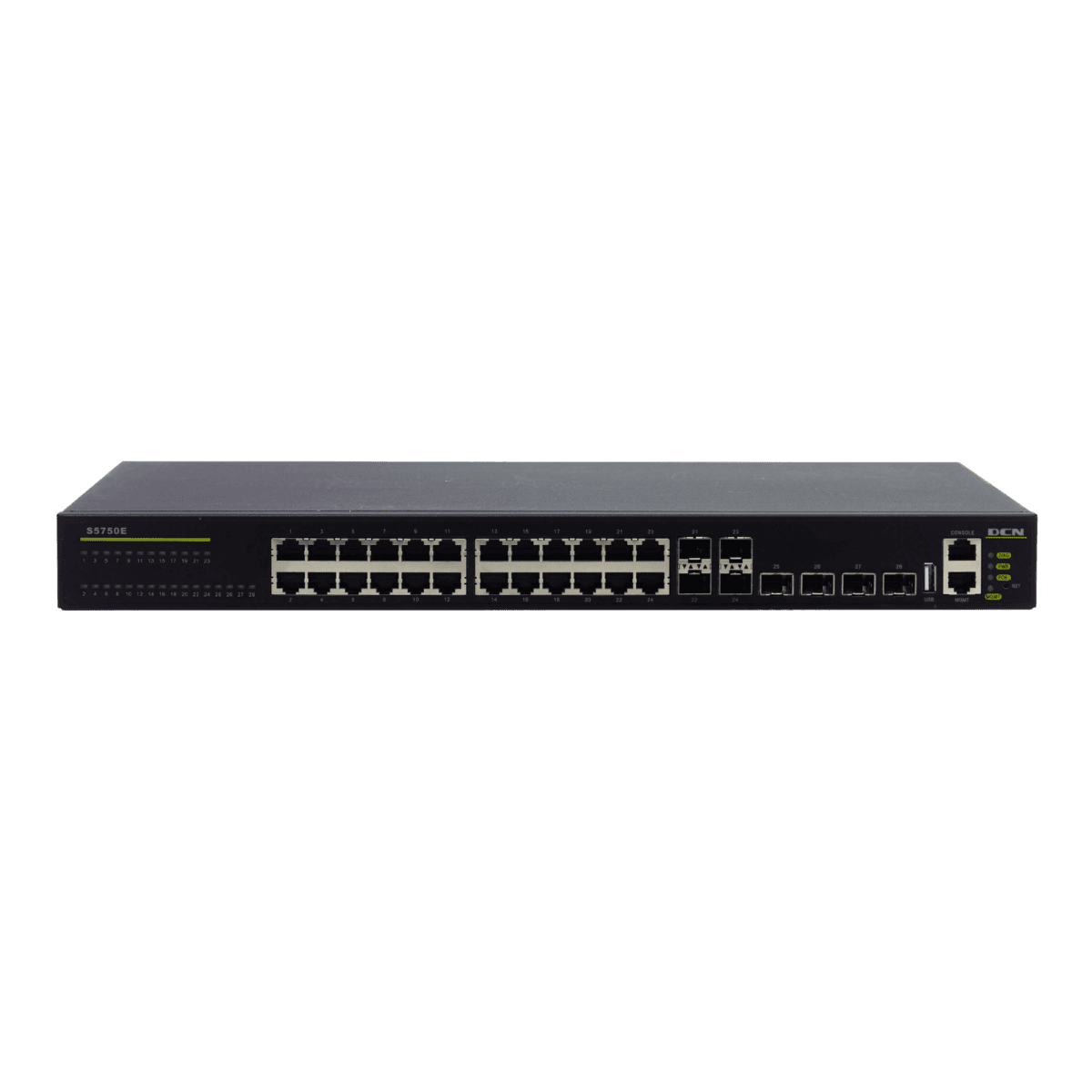

S5750E-28X-P-SI(R2)

3 10G PoE Access Switch (20*10/100/1000Base-T + 4* GbE Combo (SFP/RJ45)+ 4*10GbE (SFP+)), AC power, PoE+, PoE Power 370W, Stacking

20 x 10/100/1000Base-T
4 x Combo GT/SFP + 4 x SFPX 10 GB
Layer 3
128 GB
PoE+ 370W potencia
DHCP, QoS, ACL, Security, sFlow,

Datasheet Ver producto

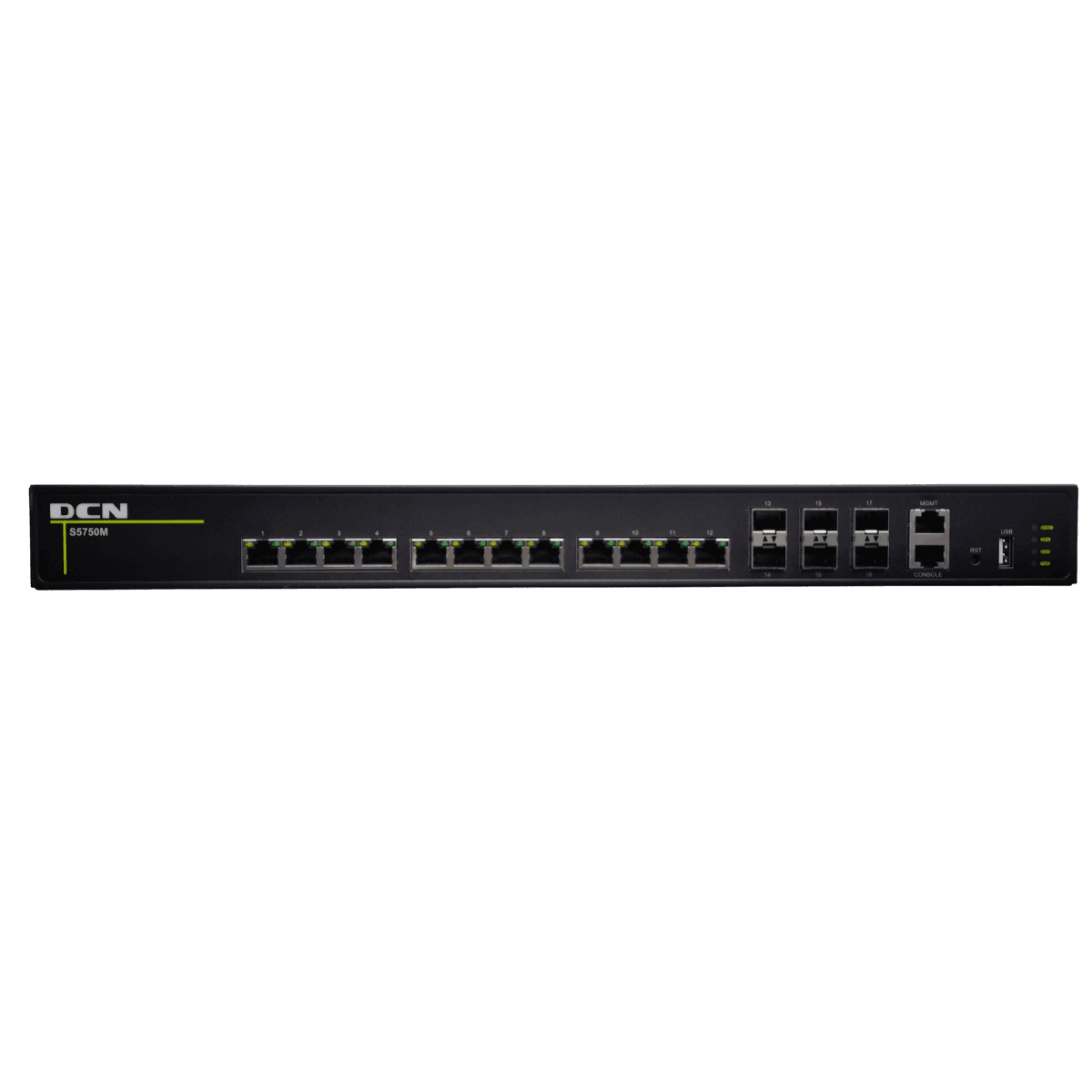

S5750M-18X-P-SI

L3 full 10G + 25G PoE Switch (12*1G/2.5G/5G/10GBase-T + 6*10G/25GbE (SFP28), all 12 ports support 90W PoE, AC + 48VDC RPS power, 802.3af/at/bt, total 370watts PoE, Stacking

12 x 1/2.5/10GB Base-T
6 x 10/25GB (SFP28)
Layer 3
128 GB
PoE++ 60W potencia de 370W
560 Gbps

Datasheet Ver producto

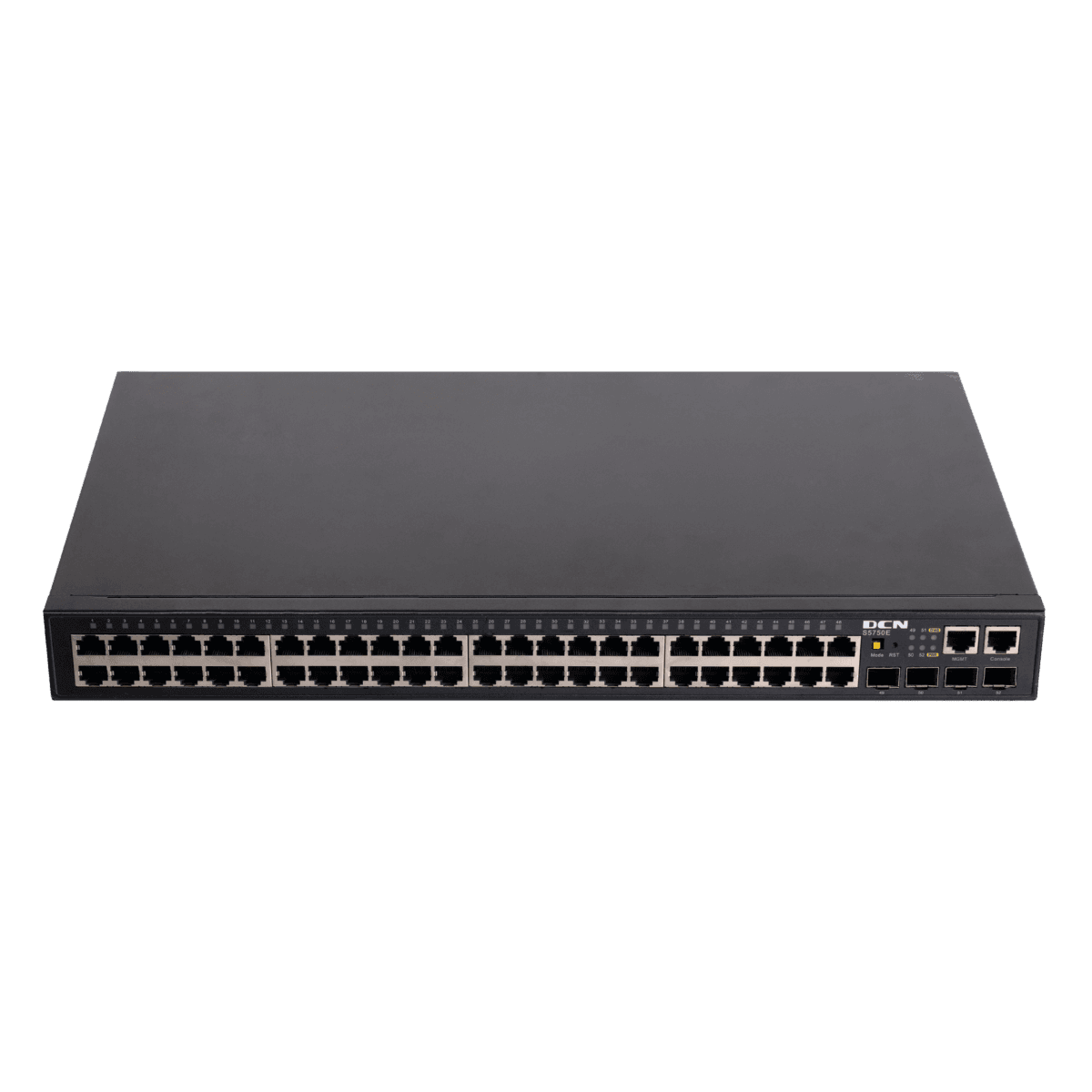

S5750E-52X-P-SI(R2)

L3 10G PoE Access Switch (48*10/100/1000Base-T + 4*10GbE (SFP+)), AC + 48V DC power, PoE+, PoE Power 740W, Stacking

48 x 10/100/1000Base-T
4 x SFPX 10 GB
Layer 3
128 GB
PoE+ 740W potencia
DHCP, QoS, ACL, Security, sFlow,

Datasheet Ver producto

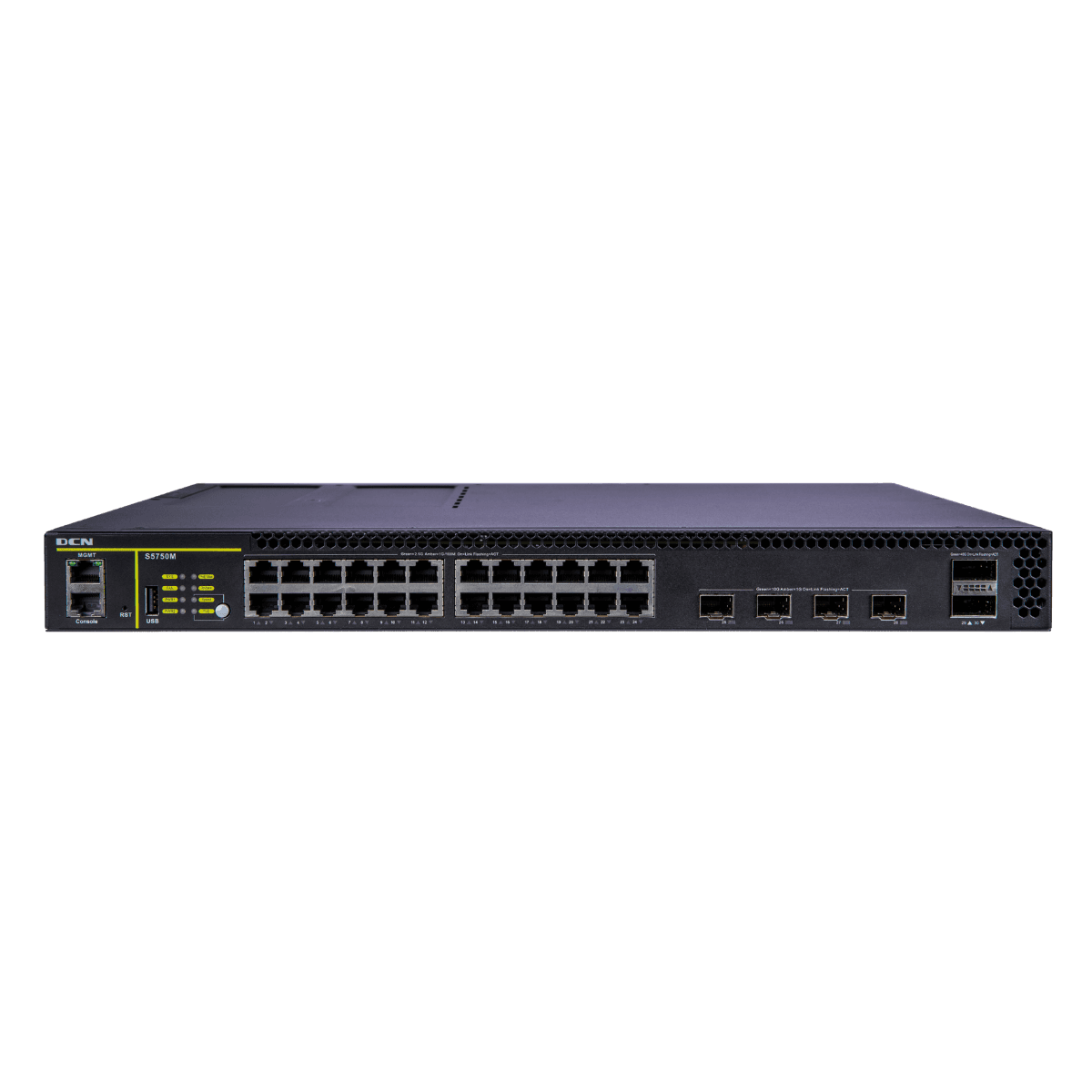

S5750M-30X-P-SI

L3 full 2.5G + 10G PoE Switch (24*100M/1000M/2.5GBase-T + 4*10GbE (SFP+) + 2*40G QSFP), the first 8 ports support 60W PoE, other 16 ports support 30W PoE, redundant AC power, default with one AC power, 802.3af/at/bt, UPoE supported, 530W PoE Power (one AC power) or 1000W PoE power(two AC power), Stacking

24 x 1/2.5 GB Base-T
4 x 10 GB SFPX + 2 x 40 GB QSFP+
Layer 3
360 GB
PoE++ 60W potencia de 530 W 1 PSU / 1060W 2 PSU
Fuente para este equipo M5750-AC-B

Datasheet Ver producto

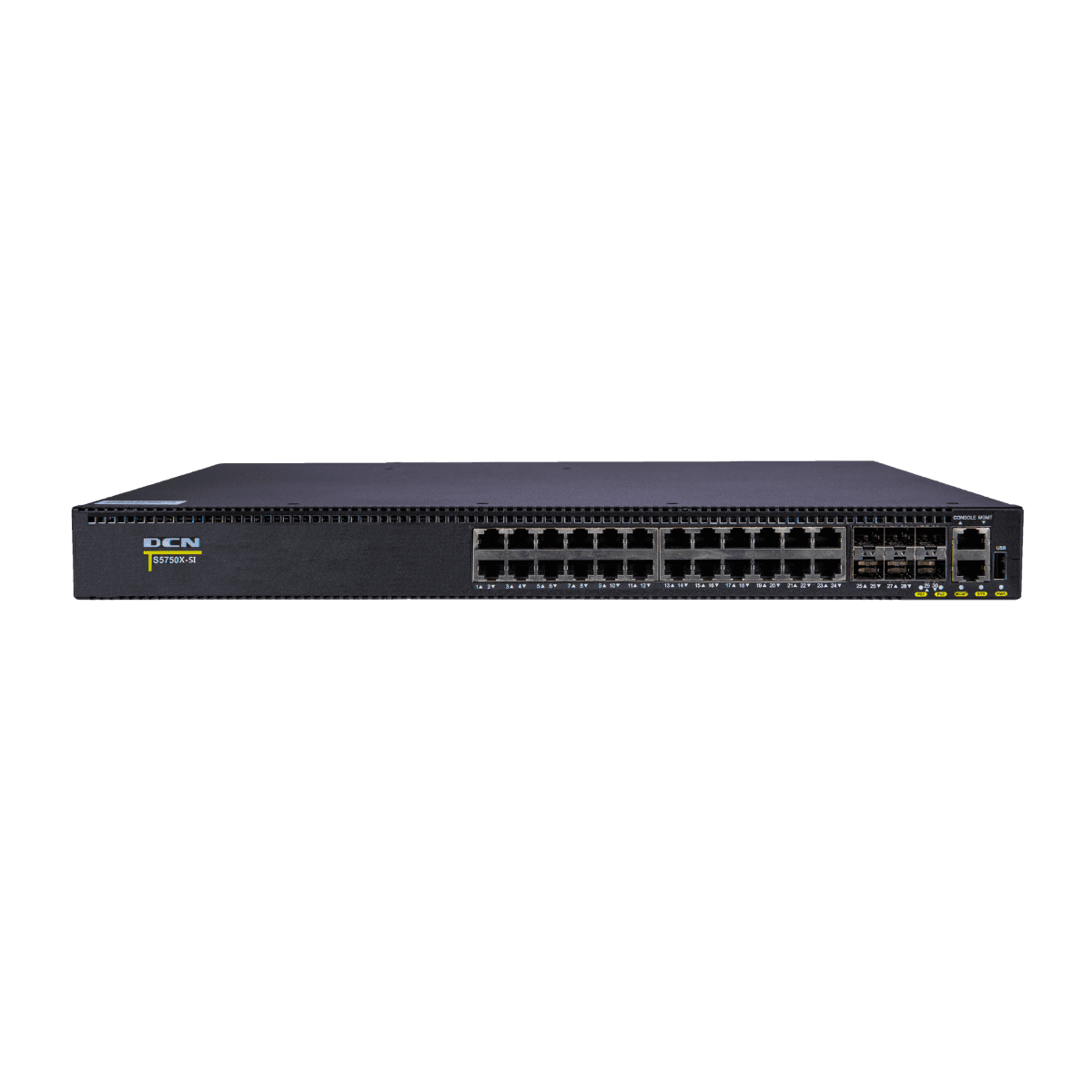

S5750X-24NT6X-P-SI

L3 full 2.5G + 10G Switch (24*100M/1G/2.5GBase-T PoE + 6*1G/10G (SFP+)), fixed AC power supply, 802.3af/at, 720W PoE ouput

24 x 1/2.5 GB Base-T
6 x SFPX 10 GB
Layer 3
240 GB
PoE+ 740W potencia
Static Routing, DNS, QoS, ACL

Datasheet Ver producto

S5750X-24NT6X-SI

L3 full 2.5G + 10G Switch (24*100M/1G/2.5GBase-T + 6*1G/10G (SFP+)), fixed AC power supply

24 x 1/2.5 GB Base-T
6 x SFPX 10 GB
Layer 3
240 GB
Bajo consumo 55 W
Static Routing, DNS, QoS, ACL

Datasheet Ver producto

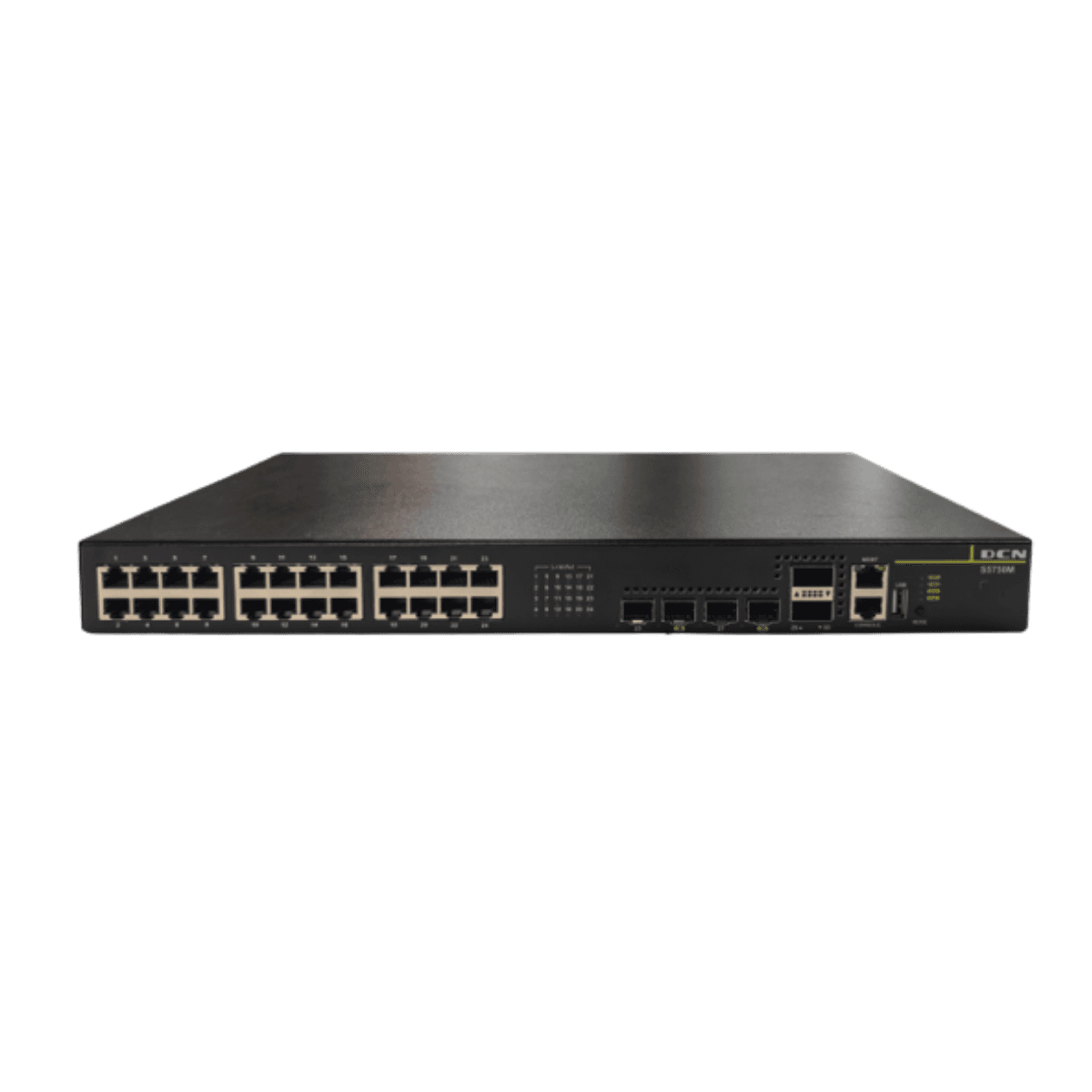

S5750M-24XT4Y2C-P-EI

L3 full multigiga PoE access switch, 24*1G/2.5G/5G/10G Base-T(POE++) + 4*10G/25G(SFP+) + 2*40G/100G(QSFP28), all 24 ports support 90W PoE, 2*Power supply slot(1* M5750M-AC-600 contained by default), 802.3af/at/bt

24 x 1/2.5/5/10 GB Base-T
2 x SFP+ 10 /25GB
2 x 40 GB/100 GB QSFP28
Layer 3
1.08 TB Capacidad de Switching
PoE++ 90W desde 400W a 1400W PoE

Datasheet Ver producto

S5750M-24NT4Y2C-P-EI

L3 full multigiga PoE access switch, 24*1G/2.5G/5G Base-T(POE++) + 4*10G/25G(SFP+) + 2*40G/100G(QSFP28), all 24 ports support 90W PoE, 2*Power supply slot(1*920W PSU contained by default), 802.3af/at/bt
